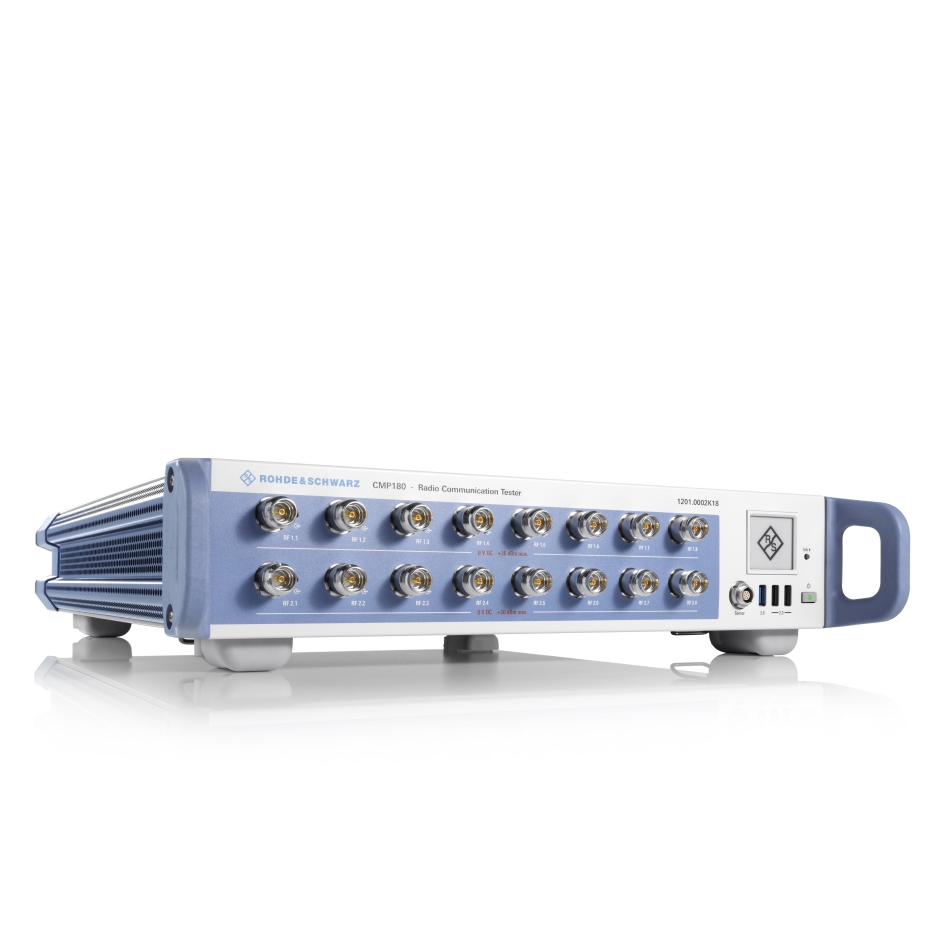

R&S CMP180 radio communication single-box tester features parallel testing on up to 16 devices.

Fulfills cellular and non-cellular multi-signal, multi-technology requirements. Is designed to manage multiple parallel signals for multiple devices and MIMO transmission methods, providing max. measurement speed at frequencies up to 8GHz. Covers wireless standards including Wi-Fi 6E, Wi-Fi 7 and 5G NR at FR1 frequencies, plus legacy technologies. Reportedly has excellent RF parameters and high output power. Can use throughout entire development phase, from engineering validation tests through to production. High-speed non-signaling test method has predefined test routines known to device under test and R&S CMP180. Features vector signal generator and vector spectrum analyzer. Generates test signal sequence as defined in routine, feeds it to DUT and analyzes results. Includes frequency ranges up to 8GHz, supporting wideband signals up to 500MHz. Features future-proof hardware with excellent RF performance. Two independent RF channels and 16 RF ports support multiple parallel device tests, MIMO transmission methods and technologies.

50990 03

Rohde & Schwarz
