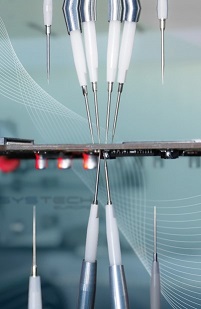

Net Signal Wave (NSW) technology enables flying probe testing of PCBAs for large or small and single- or double-sided PCBs.

Creates net-based test program where each net in a board is characterized and a signature is learned for each. During test, production boards are compared against signature for each net. Effective for large-area, densely populated PCBAs with many nets. A large-area PCBA with 11,853 total nets, 15,534 total components, and 58,137 standard electrical test steps was tested in fewer than 10 min.

Takaya
texmac.com/takaya/
