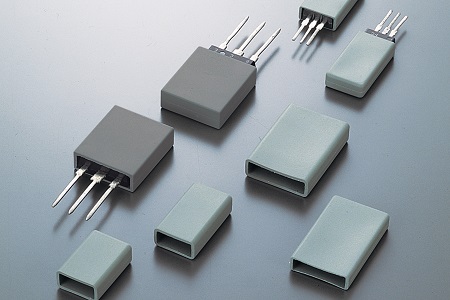

Box-shaped Sarcon thermal interface caps are available in standard sizes to fit many transistors and can be custom-ordered to exact specifications.

Installation takes seconds by sliding over heat-generating component. Once fitted, unwanted heat is dissipated to surrounding environment or nearby heatsinks. Are offered in multiple Sarcon formulations with thicknesses between 0.30mm and 0.85mm. Thermal conductivity properties range from 1.1 to 1.7 W/m•K with a corresponding thermal resistance of 0.42 to 1.35°C•in2/W. Provides additional benefits, including electrical insulation and vibration/impact protection.

TIM Cases PR

Fujipoly
fujipoly.com
