PerfectPulse pocket-sized, fast-edge signal generator and TDR provides square 32ps edge pulse.

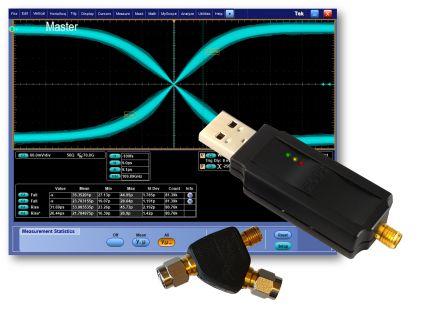

-500mV, 50Ohm output signal is square, without overshoot or undershoot. Reportedly ideal for verifying instrument and probe rise/fall times, as well as verifying signal path rise/fall time and undershoot/overshoot. Inclusion of 10GHz power splitter allows signal generator to be used as high-performance reflectometer (TDR) for measuring PCB coupons, cable and PCB trace impedance, verifying cable crimps, measuring trace and cable lengths, dielectric constant, and other applications. Single button operation allows selection of different operating frequencies with 1kHz, 10kHz, 100kHz, 1MHz, and 10MHz square wave settings, as well as ground and DC output. A 3.5mm connector is used for added performance and reliability. Is compatible with 50Ohm probes.
