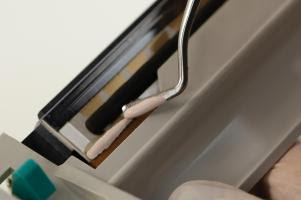

Master Bond's Supreme 11AOHTMed two component epoxy passes ISO 10993-5 testing for non-cytotoxicity and is recommended for bonding and sealing in medical device applications.

Has a volume resistivity exceeding 1014ohm-cm at 75°F and exhibits thermal conductivity of around 4 to 5BTU·in/ft²·hr·°F (0.58-0.72 W/m/K). Provides high bond strength properties with a lap shear strength of 3,200-3,400psi, a tensile strength of 7,000-8,000psi and a compressive strength of 20,000-22,000psi. Is designed to withstand thermal cycling and offers a wide service temperature range from -112°F to +400°F (-80°C to 204°C). Cures at room temperature in 24-36 hr., and faster with heat, in 1-2 hr. at 200°F. Is said to bond well to a wide variety of substrates including metals, ceramics, glass, rubbers and many plastics. Has a 1:1 mix ratio by weight, with the mixed material being a thixotropic paste. Can be packaged in double barrel cartridges for gun kits and is also available in standard jars and cans, ranging in size from ½ pint to gallon containers.

Master Bond

masterbond.com
