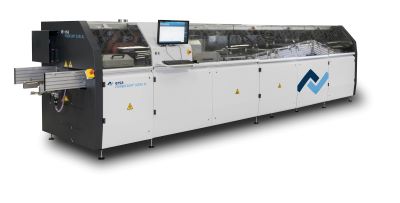

Kurtz Ersa's Powerflow Ultra wave soldering machine features a new soldering module that can achieve speeds of up to 5mm/s.

Is available with frame and finger conveyor, with working widths ranging from 330mm to 610mm in the XXL version. Distance between the soldering nozzle and the PCB is defined via the Ersasoft 5 operating software, which allows assemblies to be soldered at a precise distance, and nozzle distance and solder wave height can also be adjusted as required within an assembly. Also features the permanent measurement of the real solder volume – independent of the pump speed and tin level – using a sensor and the automatic solder feeding, which significantly shortens measuring times and increases system availability. Also features a modular design that enables optimum adaptation of the system configuration to customer-specific requirements, such as the availability of three different preheating lengths – 1.8m, 2.4m and 3 m.

Kurtz Ersa

kurtzersa.com
