ISO-Spector M2 inline 3-D AOI system with artificial intelligence is for high-end electronics assembly.

Builds on M1 AOI, with improved inspection performance and speed. Adopts redesigned chassis; accommodates larger boards (510mm x 460mm), including optional angular camera in smaller footprint. Conveyor system with pneumatic drives minimizes PCB transport, reducing handling times 27%. Hardware and software optimizations reportedly deliver 20% faster inspection times with optical unit featuring high-res 25MP camera with advanced lens optics, FoV of 69mm x 69mm and 4x multi-frequency Moiré projectors. Optional 8µm lens inspects 0201mm (008004") components and solder joints. ODB++ files can be loaded in one step. AI learns production process values of assembled and reflowed PCBs and recognizes defects based on hundreds of preset parameters. Offline programming is possible. Has auto-debugging function. Integrates with Industry 4.0 specifications via Fiber system for classification, repair, traceability and SPC. Is compatible with integrated line management systems such as Panasonic iLNB and FUJI Nexim and next-gen standards support like IPC-CFX. Equipped with computer backup systems.

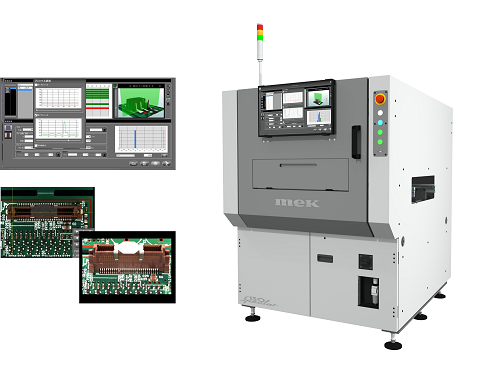

Mek ISO Spector M2 Full 3D AOI

Mek (Marantz Electronics)
