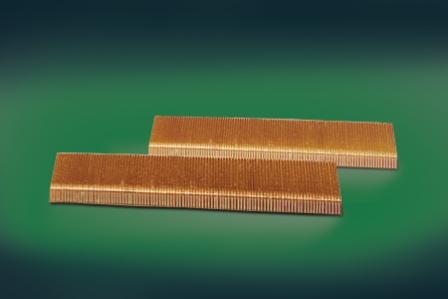

Fujipoly Zebra Gold 8000A elastomeric connectors transfer data and power between parallel components and PCBs, while exhibiting electrical resistance of less than 25mΩ.

Are constructed from low durometer silicone core wrapped with 100 parallel rows of flat, gold-plated copper wires per inch. Can accommodate PCBs with pad center spacing down to 0.25mm. Each 0.050mm x 0.127mm gold-plated element can deliver a current carrying capacity of 500mA. Can be specified in custom lengths from 0.200" to 6" and heights ranging from 0.10" to 0.50".

Fujipoly America Corp.
fujipoly.com
