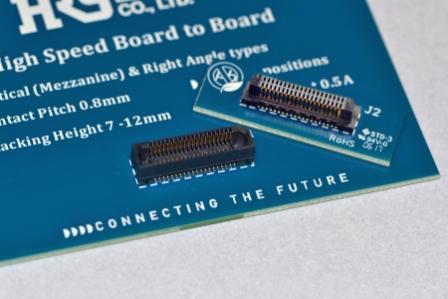

ER8 Series miniature board-to-board connector combines rugged design with high-speed transmission speeds of more than 10Gpbs to support industrial applications.

Features 0.8mm pitch; contacts are optimized for signal integrity performance. Offers wide self-alignment range with reduced mating force while maintaining high extraction forces. Has additional robustness when "zippered" during mating/unmating. Has increased contact wipe and insertion depth. Available in parallel (mezzanine) and right-angle versions. Vertical connectors have pin counts ranging from 10 to 120 positions; right-angle model is offered with 120-position pin count. Vertical stacking heights are from 7mm to 12mm. Excellent insertion loss-to-crosstalk ratio with 5-aggressor differential far-end crosstalk (FEXT) that meets IEEE802.3ap specification for 10Gbps. Rated voltage is 100V AC, and current rating is 0.5A.

Hirose
hirose.com

Hirose ER8 web
