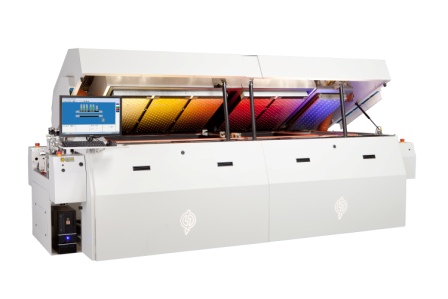

Electrovert OmniES+ full convection reflow oven comes in 5, 7, 10, and 13 zones. Uses patented IsoThermal chamber technology. Includes independent blower control in each heating and cooling zone, uses up to 36% less power than competitive systems, patented dripless cooling, and closed loop N2 control capable of maintaining inert atmospheres of <50ppm.
Speedline Technologies, speedlinetech.com

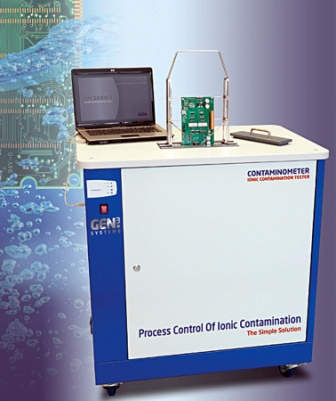

CM+ series contaminometers measure the amount of ionic contamination in accordance with all existing test methods (ROSE; process ionic contamination testing or PICT). Is freestanding and accommodates larger assemblies while maintaining a low surface area to test solution ratio. Uses solid gold test-cell, ballistic amplifiers and vigorous pumping systems to ensure measurement precision even at low conductivity values. PC-based software outputs graphical test data, pass/fail analysis and automatic hard copy. Also feature high-speed testing in 3 min.; full regeneration in typically
Gen3 Systems, www.gen3systems.com
TS9300HM Series Pur Hot Melt Jet Valve and TS930 controller are designed for high-temperature operation. TS9300HM series features diaphragm technology. Replaceable diaphragm reportedly eliminates dynamic fluid seals. Only nozzle plate and diaphragm contact fluid. TS9300HM syringe heater features disposable feed tube. Has thermal jacket designed around feed tube. Controller offers fluid management and standalone or remote control operation. PID auto-tuned temperature controllers with RTD sensors maintain uniform temperatures up to 150°C. Includes dual independent temperature controllers for jet and syringe heater. Dual trigger mode enables valve to dispense single drops, multiple drops and lines.
Techcon Systems, www.techconsystems.com
YSi-V 12M TypeHS inline optical inspection system includes improved image-processing subsystem and more responsive four-direction image capturing for superior shape detection. Features 12Mp resolution, and new iProDB inspection history management software, which combines inspection data with status information from mounters and printers in the same line to help with design for manufacture, process improvement, production management, and equipment maintenance.
Yamaha Motor IM, www.yamaha-motor-im.eu
Series 320 Electronic Weld Head System is for welding wires to electrodes, electronic components and medical devices. Features inline and offset opposed electrode configurations for flexibility, and accurate force and position parameters, which provide process control and measurement. User-defined limits and weld-to-displacement feature stops weld precisely during collapse. User-friendly I/O offers four programmable relay outputs for integration with programmable logic controllers. Other features include initial part detection feature that detects missing or extra parts, and displacement limits that facilitate monitoring of both initial and final part thickness. Optional two-level footswitch or new linear motion footswitch makes it easy to initiate operations.
Amada Miyachi America, www.amadamiyachi.com
USF-1000 Solder Wire Feeder features added control for manual soldering. Is said to increase soldering speed and eliminates tangles and unspooling. Integrates with Metcal MX-5200 or MX-500 series solder systems.
Metcal, metcal.com
