Grainy or Dull Solder Print E-mail
User Rating: / 1
Written by Paul Lotosky
Monday, 01 March 2010 00:00

Contamination or poor heat are likely culprits.

Grainy or dull solder is defined as a rough solder surface with small, gritty projections protruding through the top, or a non-shiny surface that shows no signs of chemical attack.

  • Primary process setup areas to check:
  • Impurities in the solder.
  • Intermetallic compounds.
  • Dross mixed into the solder.
  • Insufficient heat.

Other things to look for in the process:

  • Solder temperature too low.
  • Preheat too low.
  • Early removal of board.
  • Solder contaminated.
  • Conveyor speed high.
  • Excessive solder dross.
  • Conveyor vibration.

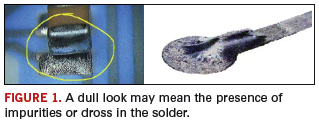

Fig 1


Other things to look for with the assembly:

  • Board contamination.
  • Component contamination.
  • Improper board handling.
  • Component leads too short.

Thing to look for with the bare board:

  • Board contamination.

Thing to look for with the board design:

  • Board contamination.  CA


Paul Lotosky is global director - customer technical support at Cookson Electronics
(; This e-mail address is being protected from spambots. You need JavaScript enabled to view it . His column appears monthly.
