Resin cracks proliferate with high-Tg laminates.

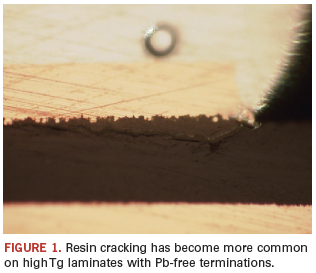

This month we feature an example of pad cratering submitted to the database. The microsection (Figure 1) shows an area array solder joint termination. The image shows the bottom of the ball to copper pad interface. A small void cavity is present in the solder connection, which is not an issue. Just below the pad is a crack in the PCB resin. This is a common fault seen on boards exposed to drop testing, flexure or vibration. The crack is through the resin in the interface next to the copper circuitry. It has become a more common defect on high-Tg laminates and with the increased rigidity of Pb-free terminations.

There are a number of issues to examine: the laminate resin system, the Pb-free solder alloy type and, of course, the environment the product is subjected. Is corner bonding of the device to the board or complete underfilling the solution?

These are typical defects shown in the National Physical Laboratory’s interactive assembly and soldering defects database. The database (http://defectsdatabase.npl.co.uk), available to all this publication’s readers, allows engineers to search and view countless defects and solutions, or to submit defects online.
