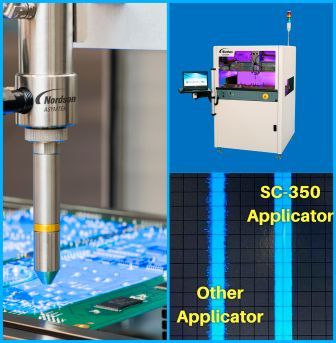

Select Coat SC-350 Select Spray applicator for conformal coating applications is said to deliver superior edge definition and uniform coating thickness at high speeds while accommodating a range of fluid viscosities.

Maintains tight keep-out zones and enables thin-film builds. For applications that require precise edge definition and uniform passes for 100% solids as well as solvent-based materials. Airflow extension optimizes atomization of high-viscosity materials, such as silicones, acrylics, and urethanes, and reportedly reduces "cobwebbing effect" from coating materials curing in air. Handles viscosities ranging from 30cps to more than 3500cps, while reducing solvent use. Is designed for use with the SL-940 conformal coating system. Supports Four-Position Tilt accessory that features the standard vertical position and tilts applicator at 30 degrees in four positions to spray all four sides of a part and areas not accessible from the standard vertical orientation. It also adapts to the Dual-Simultaneous configuration that reduces process time by 50%. Is easy to clean and maintain, with minimal wetted parts, smooth internal surfaces, and exposed splines. Cost efficiency is realized through minimized fluid and solvent use as a result of thinner film builds. Exacting keep-out zones save fluid, repair, and rework.

Nordson Asymtek

nordsonasymtek.com
