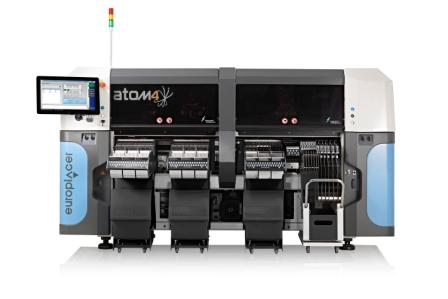

Atom 4 pick-and-place machine has Pulsar pipette head that features eight nozzles, handling components from 01005 up to 13mm2.

Delivers high accuracy. Head is designed to be maintenance-free; uses titanium and titanium nitride materials, and self-lubricating diamond nanocoatings. Is equipped with four independent axes, each fitted with a Pulsar head with placement rates up to 104,000 parts per hr. Feature robust x-y gantries driven by advanced linear motors with linear encoders for positional accuracy. Has 264 x 8mm reel capacity. Includes interchangeable 30-tray sequencer. Intelligent conveyor reportedly eliminates physical board stops.

Europlacer Americas

Europlacer Atom4 web
