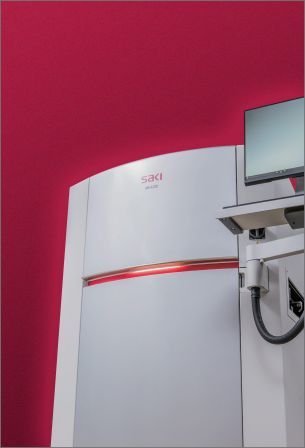

3Di AOI delivers high-speed (5,700mm2/sec.), x/y positioning of 3µm at 3Σ, height repeatability below 2µm at 3Σ, and scalable resolutions of 7, 12 and 18µm for boards weighing 12kg.

Rigid gantry structure features dual-motor drive system, linear scale, and full closed-loop functionality for machine accuracy and repeatability to generate absolute measurement data essential for accurate machine-2-machine (M2M) communication. CoaXPress interface in overhead camera captures images 1.7 times faster than previous models.

Saki

sakiglobal.com
